2022 High quality Molex Picoblade - SMH200-08H – KEXUN

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

We offer fantastic energy in high quality and enhancement,merchandising,profits and promoting and procedure for Iso Connector, Ph Connector, Molex Plugs, Our main objectives are to provide our customers worldwide with good quality, competitive price, satisfied delivery and excellent services.
2022 High quality Molex Picoblade - SMH200-08H – KEXUN Detail:

❑ Product Specification

AWG28-22

Item                                                      Specification

Operating Voltage                             AC/DC 250V

Current Rating                                     AC/DC 3A

Operating Temperature                   -25℃ ~ +85℃

Insulation resistance                            1000㏁

Withstanding voltage                           No flash over and no physical damage

Contact resistance                                30mΩ MAX

Durability Contact Resistance :          50mΩ MAX

Vibration 1) Contact Resistance :     50mΩ MAX 2) Discontinue : 1μsec MAX

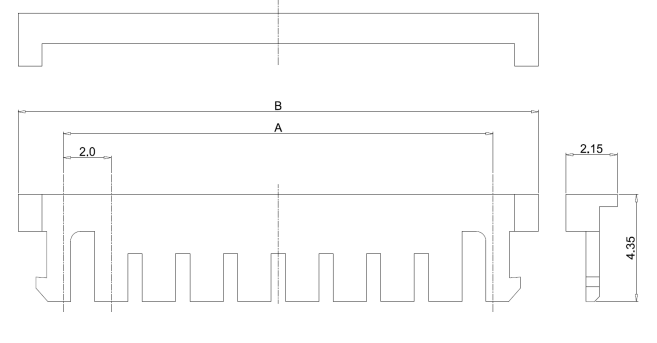

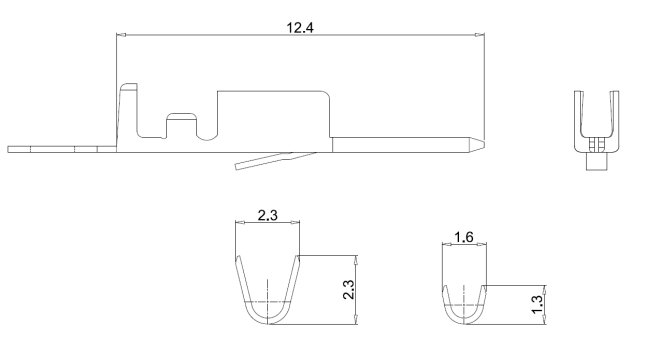

Product detail pictures:

2022 High quality Molex Picoblade - SMH200-08H –  KEXUN detail pictures

2022 High quality Molex Picoblade - SMH200-08H –  KEXUN detail pictures

2022 High quality Molex Picoblade - SMH200-08H –  KEXUN detail pictures
