Best quality Wiring Blocks - SMH200-08H – KEXUN Detail:

❑ Product Specification

AWG28-22

Item Specification

Operating Voltage AC/DC 250V

Current Rating AC/DC 3A

Operating Temperature -25℃ ~ +85℃

Insulation resistance 1000㏁

Withstanding voltage No flash over and no physical damage

Contact resistance 30mΩ MAX

Durability Contact Resistance : 50mΩ MAX

Vibration 1) Contact Resistance : 50mΩ MAX 2) Discontinue : 1μsec MAX

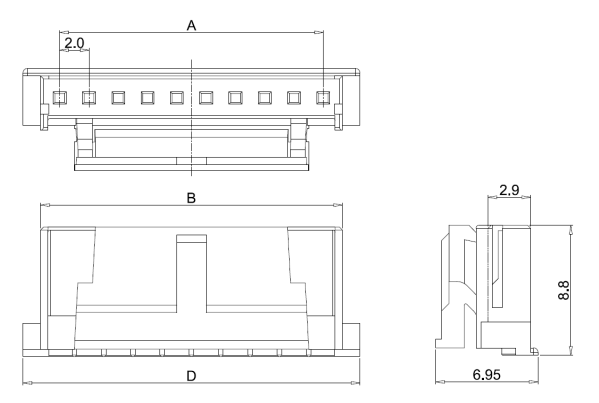

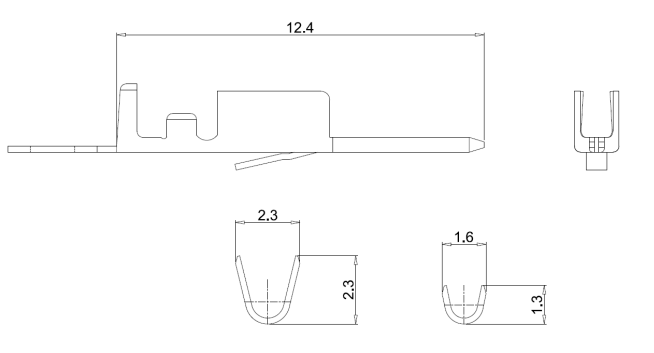

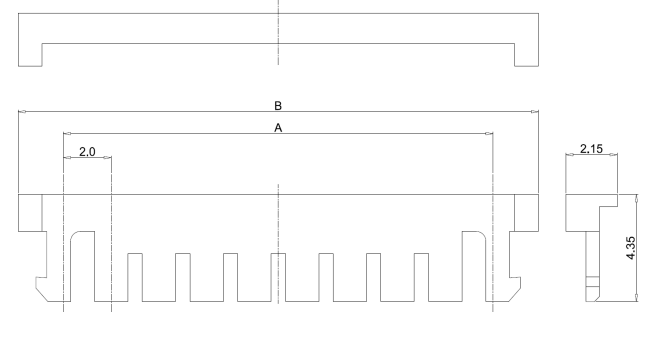

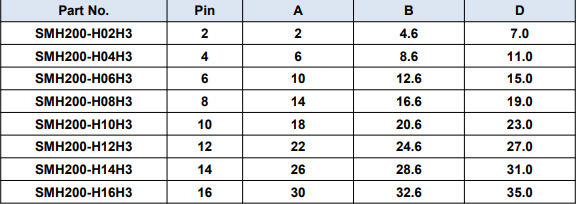

Product detail pictures:

Related Product Guide:

We are experienced manufacturer. Wining the majority from the crucial certifications of its market for Best quality Wiring Blocks - SMH200-08H – KEXUN , The product will supply to all over the world, such as: Ethiopia, Denver, Japan, After years of development, we have formed strong ability in new product development and strict quality control system to ensure excellent quality and service. With the support of many long term cooperated customers, our products are welcomed all over the world.
