Reasonable price Impact Connector - SMH200-09H – KEXUN Detail:

❑ Product Specification

AWG28-22

Item Specification

Operating Voltage AC/DC 250V

Current Rating AC/DC 3A

Operating Temperature -25℃ ~ +85℃

Insulation resistance 1000㏁

Withstanding voltage No flash over and no physical damage

Contact resistance 30mΩ MAX

Durability Contact Resistance : 50mΩ MAX

Vibration 1) Contact Resistance : 50mΩ MAX 2) Discontinue : 1μsec MAX

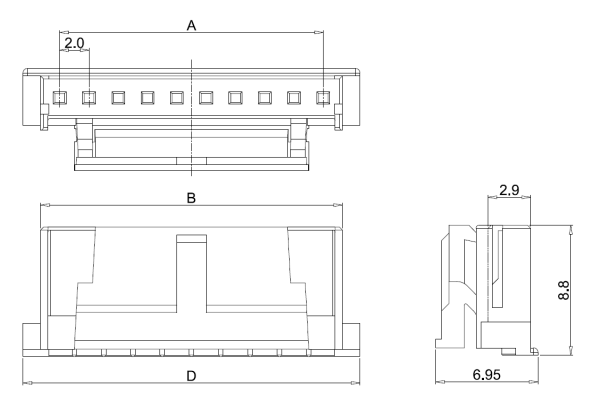

Product detail pictures:
