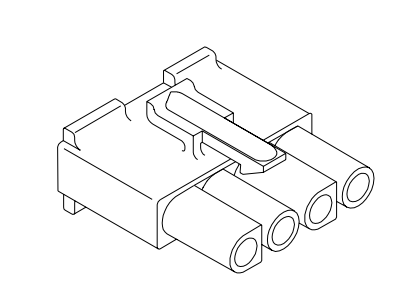

3191-4R/19091049
Short Description:
Physical
| Breakaway | No |
| Circuits (maximum) | 4 |
| Circuits Detail | 2×2 |
| Color – Resin | Natural |
|
Flammability
 |
94V-2(0) |
| Gender | Receptacle |
| Glow-Wire Capable | No |
| Keying to Mating Part | None |
| Lock to Mating Part | Yes |
| Material – Resin | Nylon |
| Net Weight | 3.800/g |
| Number of Rows | 1 |
| Packaging Type | Bag |
| Panel Mount | No |
| Pitch – Mating Interface | 6.70mm |
| Polarized to Mating Part | Yes |
| Stackable | No |
| Temperature Range – Operating | -40° to +105°C |
| Current – Maximum per Contact | 9.0A |
