DJ7021Y-1.5-21/282080-1

Short Description:

1667551185305


Product Detail

Product Tags

Product Type Features

  • Connector Shape : Rectangular

  • Connector & Housing Type : Housing for Female Terminals

  • Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Wire

  • Sealable : Yes

  • Primary Locking Feature : On the Terminal

  • Connector & Contact Terminates To : Wire & Cable

Configuration Features

  • Number of Positions : 2

  • Number of Rows : 1

Electrical Characteristics

  • Operating Voltage (VDC): 24

  • Nominal Voltage Architecture (V): 12, 24

Body Features

  • Body Material : PA GF

  • Cable Exit Angle : 180°

  • Primary Product Color : Black

  • Connector Code : Neutral

Contact Features

  • Contact Type : Receptacle

  • Contact Size : 1.5mm

  • Mating Tab Width : 1.5 mm [ .059 in ]

  • Contact Current Rating (Max) (A): 14

Housing Features

  • Centerline (Pitch) : 6 mm [ .236 in ]

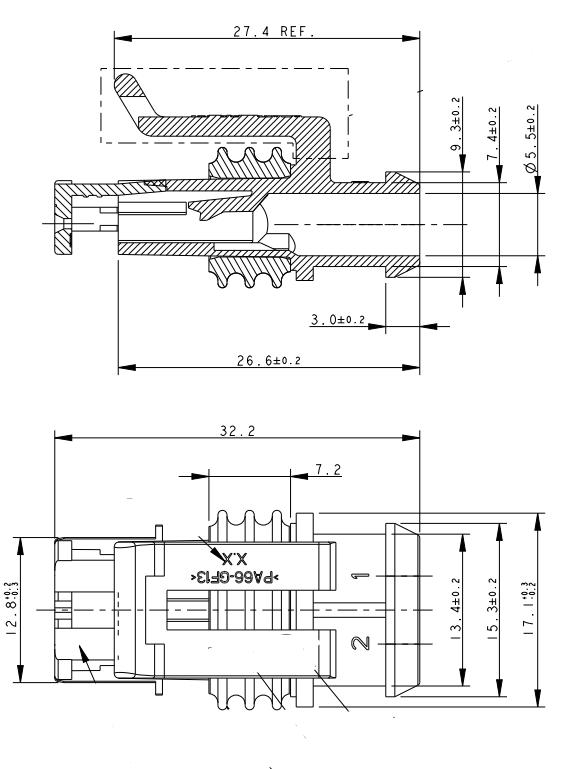

Dimensions

  • Product Height : 32.2 mm [ 1.268 in ]

  • Product Length : 17.1 mm [ .673 in ]

  • Product Width : 9.3 mm [ .366 in ]

Industry Standards

  • Degree of Protection : IP67
