factory customized Sma Male Connectors - YH396-07VR – KEXUN

Short Description:

Product Detail

Product Tags

Feedback (2)

We always follow the principle "Quality Very first, Prestige Supreme". We have been fully committed to delivering our customers with competitively priced high-quality products and solutions, prompt delivery and experienced services for Equivalent Connector, Socket, Wire With Connector, Our ultimate target is usually to rank as a top brand also to lead as a pioneer in our field. We are sure our profitable experience in tool generation will gain customer's trust, Wish to co-operate and co-create a far better foreseeable future with you!

factory customized Sma Male Connectors - YH396-07VR – KEXUN Detail:

Item Specification

Operating Voltage AC/DC 250V

Current Rating AC/DC 5A

Operating Temperature -25℃ ~ +85℃

Insulation resistance 1000㏁

Withstanding voltage No flash over and no physical damage

Contact resistance 30mΩ MAX

Durability Contact Resistance : 50mΩ MAX

Vibration 1) Contact Resistance : 50mΩ MAX 2) Discontinue : 1μsec MAX

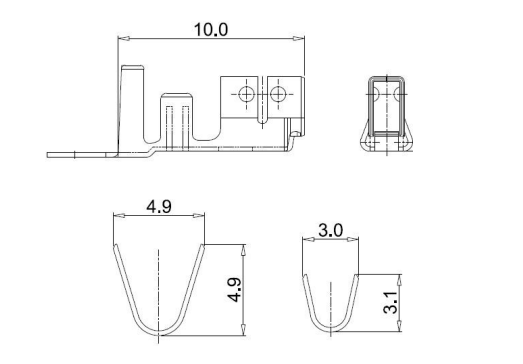

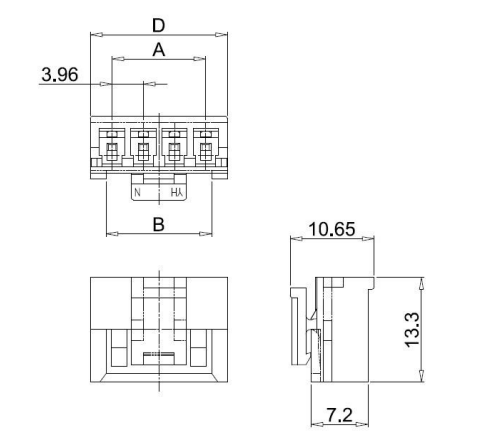

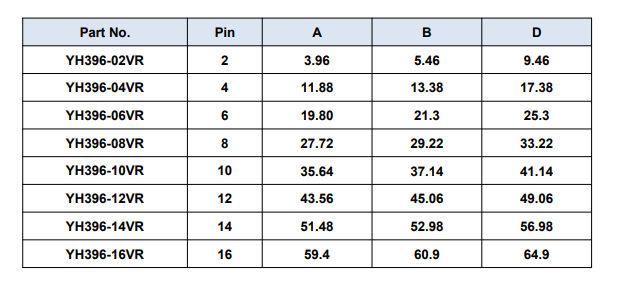

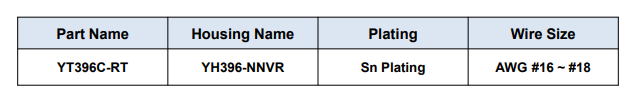

Product detail pictures:

Related Product Guide:

We take pleasure in a really excellent name amongst our shoppers for our exceptional product or service excellent, competitive rate and also the greatest services for factory customized Sma Male Connectors - YH396-07VR – KEXUN , The product will supply to all over the world, such as: Kuala Lumpur, Jeddah, Iran, Qualified R&D engineer might be there for your consultation service and we will try our best to meet your requirements. So you should feel free to contact us for inquiries. You'll be able to send us emails or call us for small business. Also you are able to come to our business by yourself to get further knowing of us. And we are going to surely present you with the best quotation and after-sale service. We're ready to build stable and friendly relations with our merchants. To achieve mutual success, we'll make our best efforts to build a solid co-operation and transparent communication work with our companions. Above all, we're here to welcome your inquiries for any of our merchandise and service.
