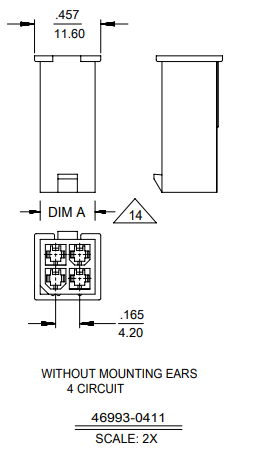

469930411
Short Description:
| Status | Active |
| Category | Crimp Housings |
| Series | 46993 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Overview | Mini-Fit Family Power Connectors |
| Product Name | Mini-Fit Jr. |
| Circuits (maximum) | 4 |
| Color – Resin | Black |
Flammability  |
94V-2（0） |
| Gender | Plug |
| Glow-Wire Capable | Yes |
| Keying to Mating Part | None |
| Lock to Mating Part | Yes |
| Material – Resin | Nylon |
| Net Weight | 1.516/g |
| Number of Rows | 2 |
| Packaging Type | Bag |
| Panel Mount | No |
| Pitch – Mating Interface | 4.20mm |
| Pitch – Termination Interface | 4.20mm |
| Polarized to Mating Part | Yes |
| Ports | 1 |
| Stackable | No |
| Temperature Range – Operating | -40° to +105°C |
