XADRP-18V
Short Description:
PITCH：2.5MM
Current rating: 3A AC/DC
Voltage rating: 250V AC/DC
Temperature range: -40-105
Insulation resistance: 1000MΩ
Applicable wires: AWG26-20
Material: PA66 UL94VO

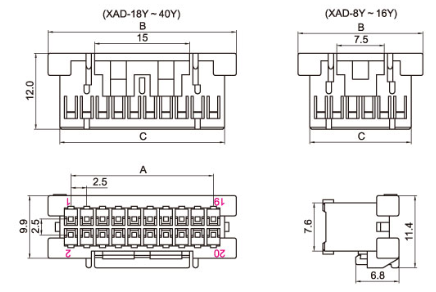

| 孔数 POLES |
型号 PART NUMBER |
尺寸 DIMENSION(MM) | |||
| A | B | C | |||
| 8 | XADRP-8Y | 7.5 | 14.7 | 11 | |
| 10 | XADRP-10Y | 10 | 17.2 | 13.5 | |
| 12 | XADRP-12Y | 12.5 | 19.7 | 16 | |
| 14 | XADRP-14Y | 15 | 22.2 | 18.5 | |
| 16 | XADRP-16Y | 17.5 | 24.7 | 21 | |
| 18 | XADRP-18Y | 20.0 | 27.2 | 23.5 | |
| 20 | XADRP-20Y | 22.5 | 29.7 | 26.0 | |
| 22 | XADRP-22Y | 25 | 32.2 | 28.5 | |
| 24 | XADRP-24Y | 27.5 | 34.7 | 31 | |
| 26 | XADRP-26Y | 30.0 | 37.2 | 33.5 | |
| 28 | XADRP-28Y | 32.5 | 39.7 | 36 | |
| 30 | XADRP-30Y | 35.0 | 42.2 | 38.5 | |
| 32 | XADRP-32Y | 37.5 | 44.7 | 41.0 | |
| 34 | XADRP-34Y | 40.0 | 47.2 | 43.5 | |
| 36 | XADRP-36Y | 42.5 | 49.7 | 46.0 | |
| 38 | XADRP-38Y | 45.0 | 52.2 | 48.5 | |
| 40 | XADRP-40Y | 47.5 | 54.7 | 51.0 | |
